Developer settings

Developer tools are only available for ShapeDiver users with a paid subscription.

Secret keys for Grasshopper

Use this table to define and safely store so-called secrets associated with your ShapeDiver account. Eeach secret consists of a name and a secret value. Those secrets can then be retrieved and used in Grasshopper using their name, by means of the Secret Input component. This component only works on ShapeDiver servers and locally for users authenticated to their ShapeDiver account.

Platform API access keys

The ShapeDiver Platform can be accessed by means of the Platform API and corresponding SDKs. This allows you to create applications which act on behalf of your ShapeDiver Platform user. Some examples:

Your application might request a token for running exports of your ShapeDiver models, batch process a number of export requests, and then store the results in your own backend system.
Your application might list all of your ShapeDiver models, request analytics for them from the Geometry Backend, and create a report for you.

When creating such applications it is important to keep the security of your ShapeDiver account in mind, which is why we added support for access key pairs.

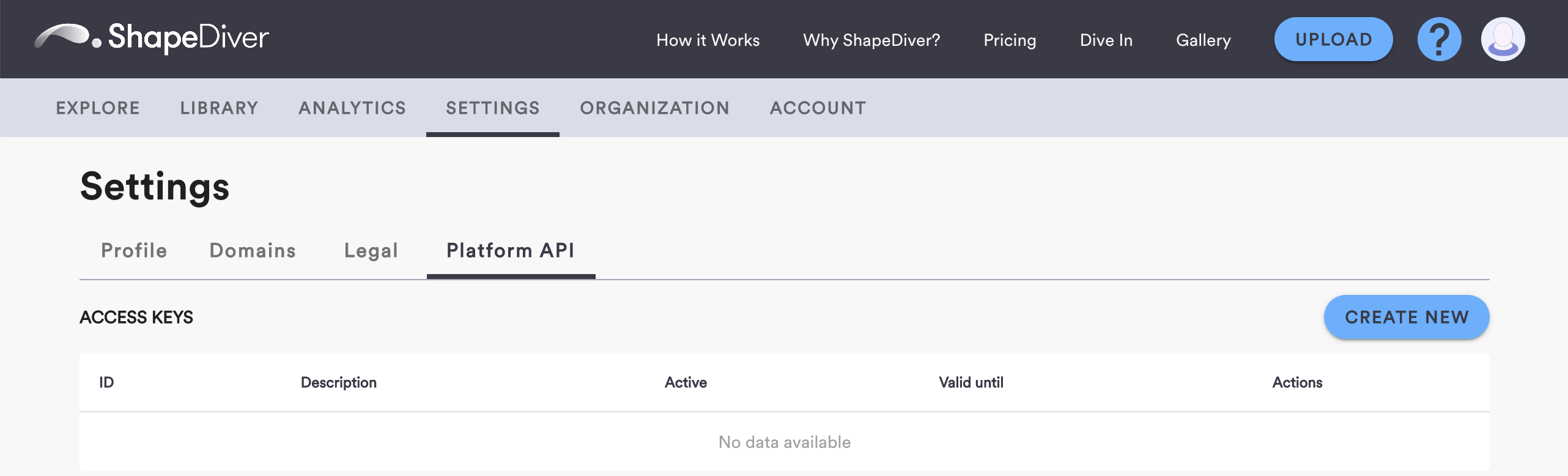

Access key pairs

Whenever possible do not use your username and password for usage of the SDK. Instead create an access key pair, consisting of an

access key id (to be used instead of your username), and an
access key secret (to be used instead of your password).

Using access keys allows you to keep your applications and your account secure, because access keys

can be limited in scope (e.g. they can be limited to be read only)
can easily be revoked at any time
can be time limited.
