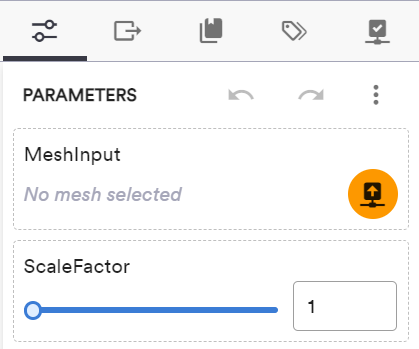

We list in this section all the Grasshopper components which are turned into inputs of a ShapeDiver model. In other words, by including these components in a definition before uploading it, the online model will expose them as ways to remote control the definition, either directly through the model view page and its built-in interface, or through one of the APIs.

List of supported inputs

  • Native Grasshopper inputs

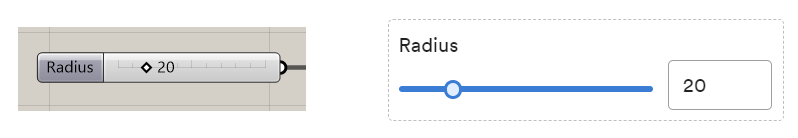

    • Number slider

    • Value List

    • Boolean Toggle

    • Color Swatch and Color Picker

Including any other native Grasshopper inputs (from the Params > Input category) will not prevent the file being uploaded to ShapeDiver, but these inputs will not translate into exposed controls of the online ShapeDiver model.

  • ShapeDiver-specific inputs (included in the plugin)

    • Direct Text Input

    • Import Bitmap

    • Import Geometry

    • Import Text

Read more about these components in the Input section of the plugin documentation.

Ordering and grouping inputs

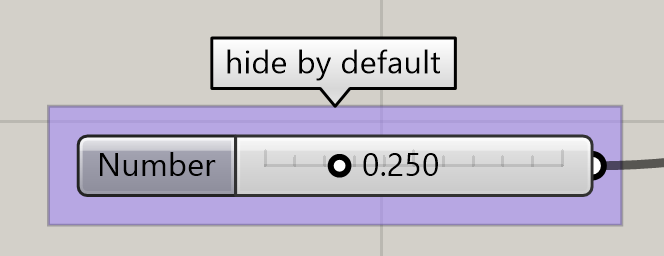

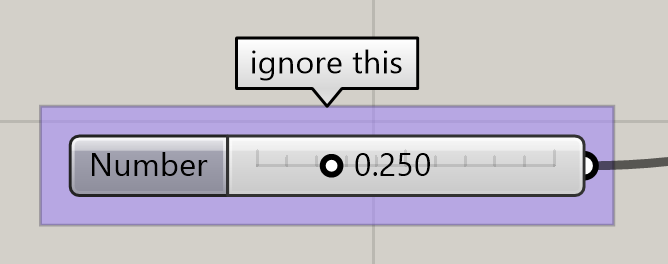

Using the position of input components on the canvas, as well as native Grasshopper groups, it is possible to specify the order of parameters in the online platform, as well as group parameters in separate sub-categories by means of accordions. Read more about ordering and grouping inputs.


For each set of inputs sent to the ShapeDiver servers for remote computation, the system sends back outputs corresponding to the computed solution. These outputs come in different natures according to the sections below.

Visualization geometry

Geometry corresponding to the computed solution is returned as one of several glTF files which can be visualized directly in the ShapeDiver viewer (using the online platform or embedding the viewer using iframes or the viewer API). These geometry assets are included as outputs for all components which have their preview turned on in Grasshopper. Native Grasshopper components will return the geometry using a standard default material, while using the ShapeDiver display components allows the definition of PBR materials for high-quality rendering in the viewer.

Read more about displaying geometry in the Display section of the plugin documentation.

Structured data

The ShapeDiver plugin includes a Direct Data Output component which supports virtually any data type in Grasshopper. At the moment, this data is available only through APIs, and does not translate into visible elements on the platform, but it has proven crucial in many applications our users have developed around ShapeDiver models. See in particular the way developers can use JSON as a way to transfer data to and from ShapeDiver models as part of their applications.

File exports

The export components of the ShapeDiver plugin make it possible to build file assets from computed solutions, and expose them to the online platform (through a download button) and the APIs. Several file formats are available with many options, and object properties such as names, layers, colors, etc… can be controlled through the use of the attributes system.
