The Dowload Export component can be used to export multiple file types straight from the viewer resulting from the Grasshopper algorithm uploaded on ShapeDiver. On the ShapeDiver platform, this translates with a download button in the viewer controls. The button shows the name that was given to the component in Grasshopper, and it cannot be changed again in the Edit mode. The download can also be triggered through the API.

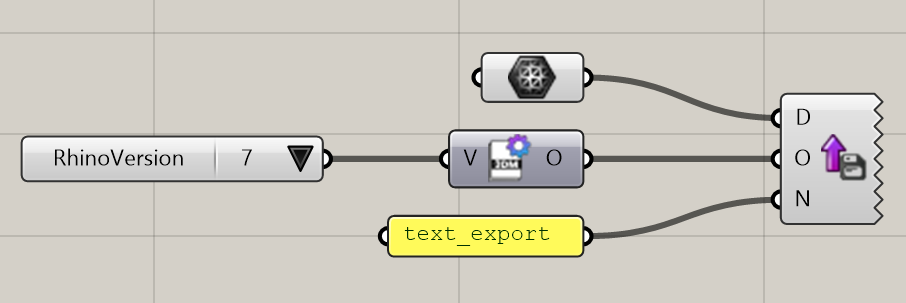

The component has three parameters: the Data (D) to be exported, the export Options (O) and the Name (N) of the exported file. Consider the example below:
This definition will create an export button in the online model that lets users download a 3DM file after picking which version of 3DM (5, 6 or 7) they want the file to use. The resulting file downloaded from the platform (or any other web application) will be called test_export.3dm.
The component can typically be used to export production files for CNC machining and 3d printing, images and data for printing quotes and order summaries, or even the full 3d geometry created by the definition itself.
Available file formats for exporting
Each of the following file types can be exported according to the options defined in their respective Export Options component. Read more about the various Export Options components.

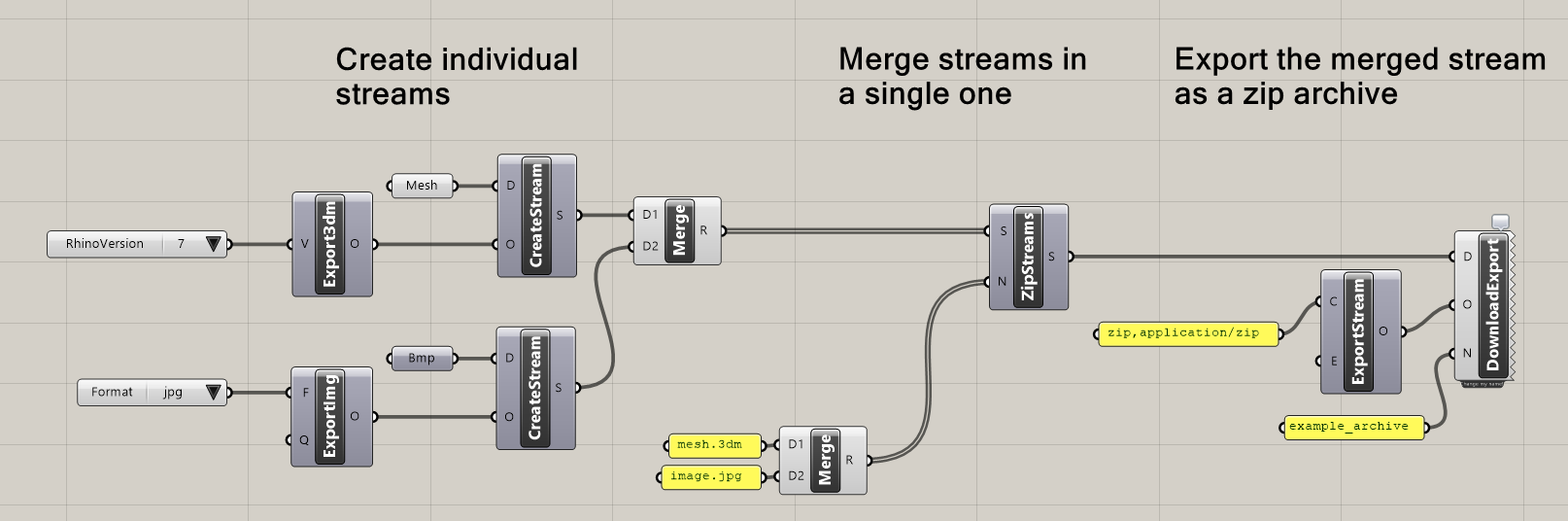

CAD files | Text files | Image files | Other file formats |
|---|---|---|---|
3dm, 3ds, stl, dxf, dwg, step, obj | txt, csv, g/gcode, xml, ifc | bmp, gif, jpg, png, tiff Read more about the Image components of the ShapeDiver plugin. | data streams Read more about the PDF components of the ShapeDiver plugin |
For all available file formats, it is possible to define export options using the Export Options components. Export options for each CAD file type correspond to the options offered when exporting using Rhino. Other format types come with custom options offered by the ShapeDiver plugin.
Export geometry including document properties
Using the Download Export and Email Export components of the ShapeDiver plugin, one can define file exports from the ShapeDiver model created from a Grasshopper definition. Using the ShapeDiver attribute system, one can attach reserved attributes to geometry elements which will be mapped to standard document properties of the exported files. The currently supported document properties are the following: name, layer, nestedlayer, color, plotcolor, plotweight, material.
Make sure that the exported file format supports the properties you are using from the list above. As an example, obj files do not support layers, and therefore layer attributes will be ignored in the export process.

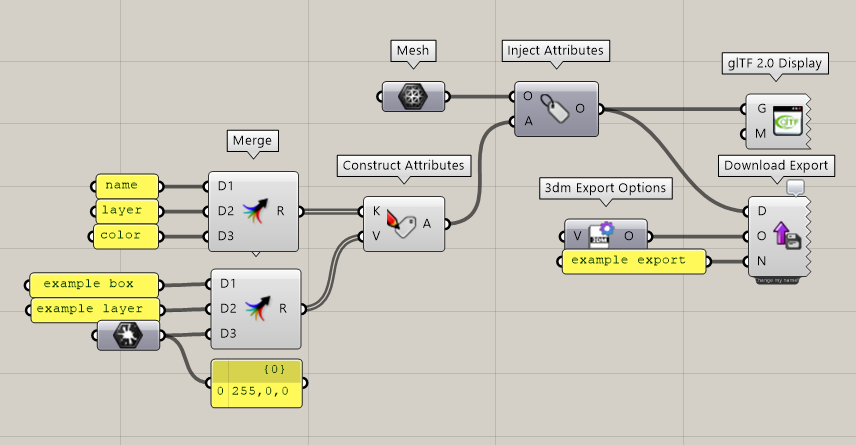

Consider the following definition, where attributes (name, layer and color) are injected in a mesh object before it is connected to both a Display component (for online display) and a Download Export component:

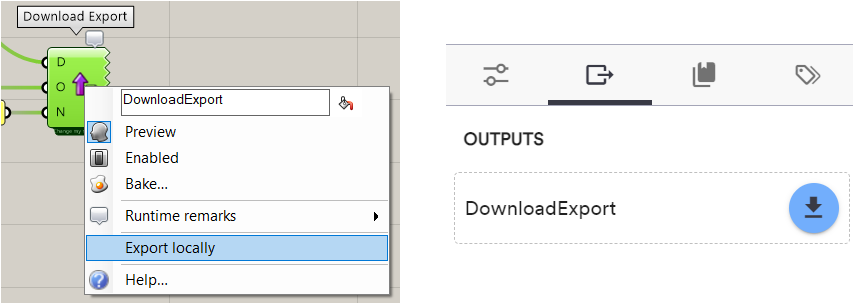

The file exported with the export component will feature the cube, and the three defined attributes will map to document properties of the 3dm file. This can be tested locally by right-clicking on the export component on “Export locally”, and again after uploading to ShapeDiver, where an export button will be included in the model view page:

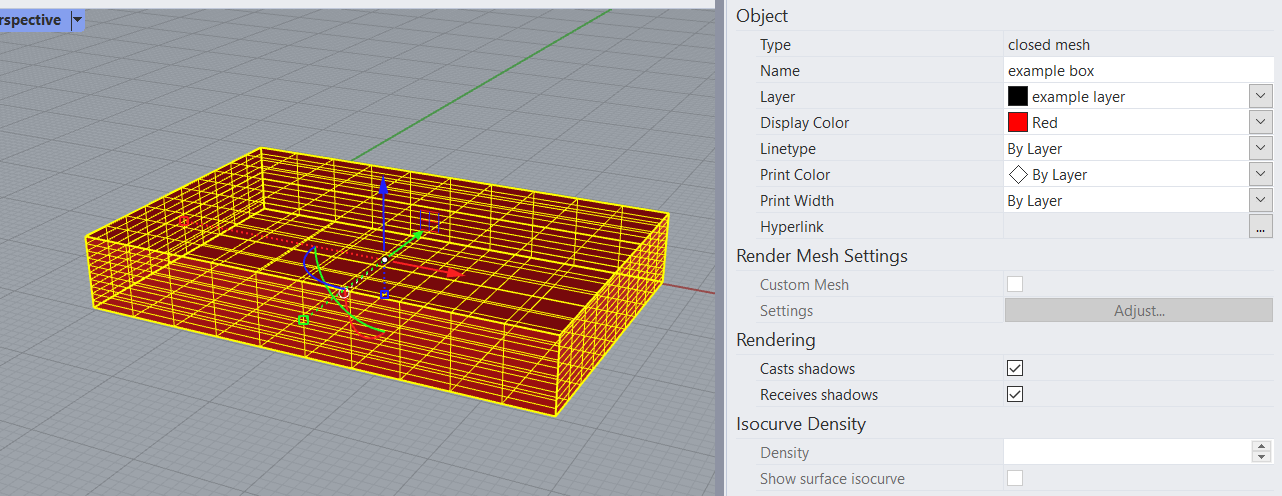

In both cases, opening the exported file in Rhino will show that the exported mesh includes all 3 properties defined by the attributes:
Find below the Grasshopper definition from the example:
Read more about export attributes.
Layer management

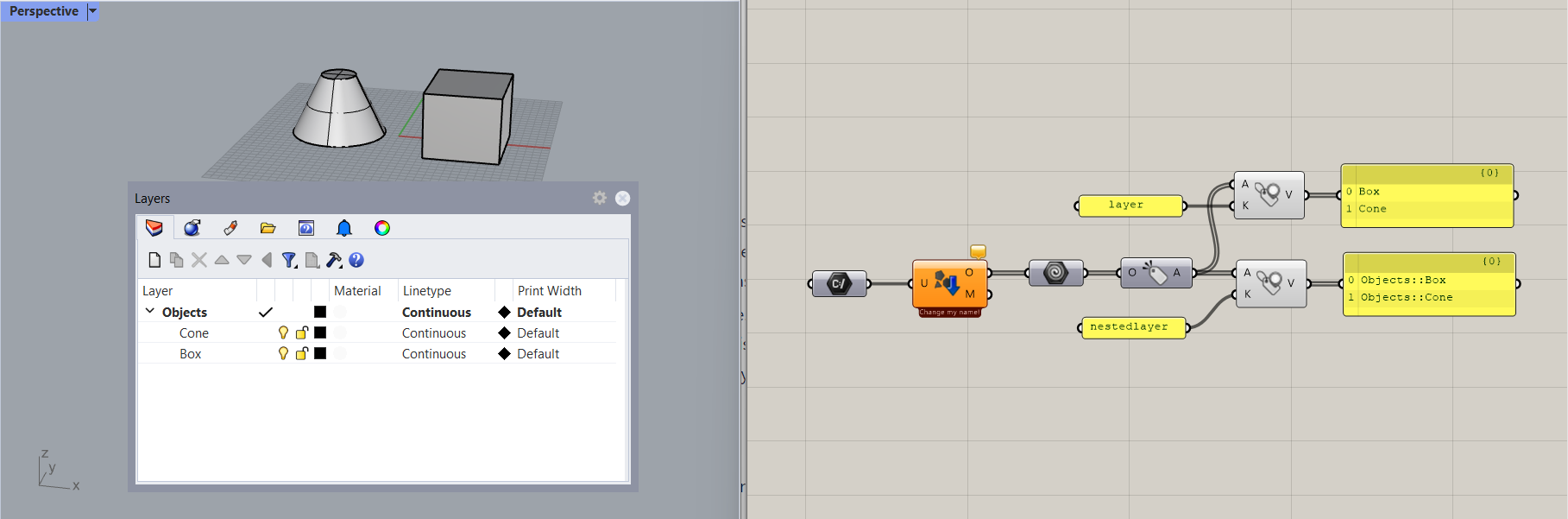

Since version 1.16, the ShapeDiver plugin supports nested layers. For backwards compability reasons, this is not done using the layer attribute but rather a new attribute called nestedlayer.
The behaviour of the layer attribute is unchanged: it only contains the bottom sublayer for the object.
The nestedlayer attribute, on the other hand, contains the whole hierarchy of layers the object belongs to in a double colon separated string.
If both the nestedlayer and layer attributes are used for exporting, the layer attribute is ignored and only nestedlayer is used.

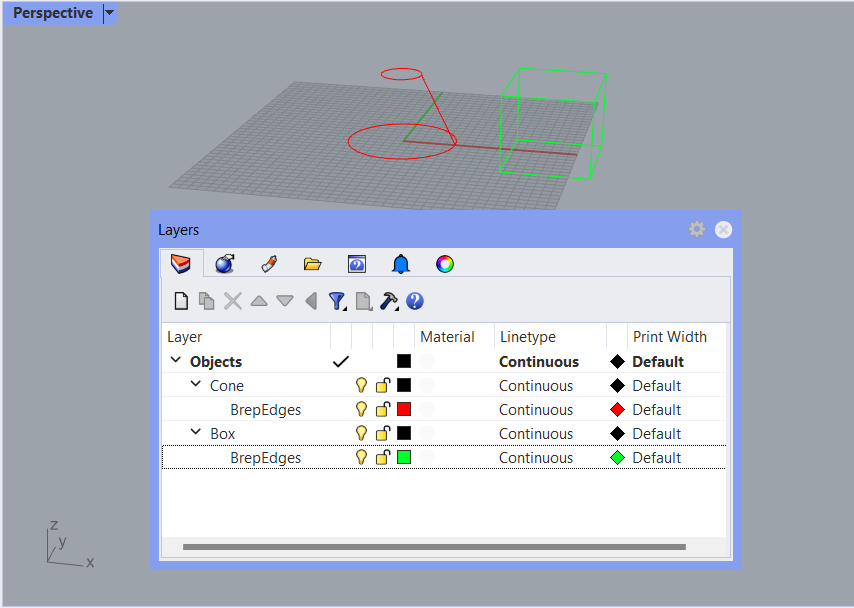

Read the nestedlayer attribute in imported files:
Write the

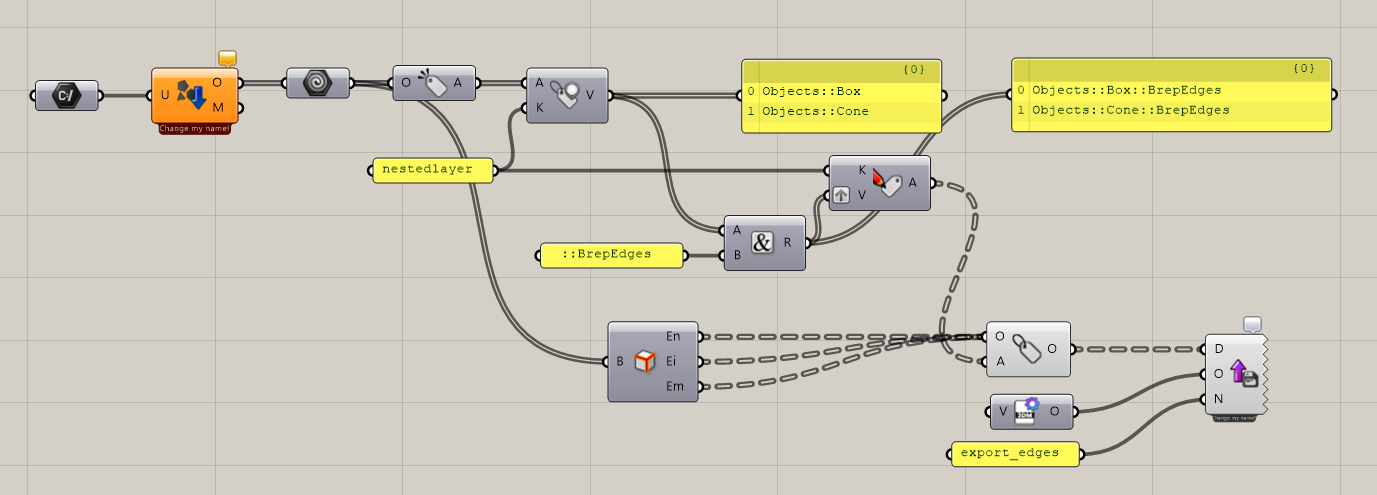

nestedlayerattribute before exporting:
Export geometry including user text
Using the Download Export and Email Export components of the ShapeDiver plugin, one can define file exports from the ShapeDiver model created from a Grasshopper definition. Using the ShapeDiver attribute system, one can attach custom attributes that will map to User Text in the exported files.
User Text are a Rhino feature which is natively stored in 3dm files, and maps to equivalent object properties in some other file formats, but not all. Make sure the file format you are exporting too supports User Text as defined by Rhino (for example, open a file of this format in Rhino and check if User Text can be found in imported objects).

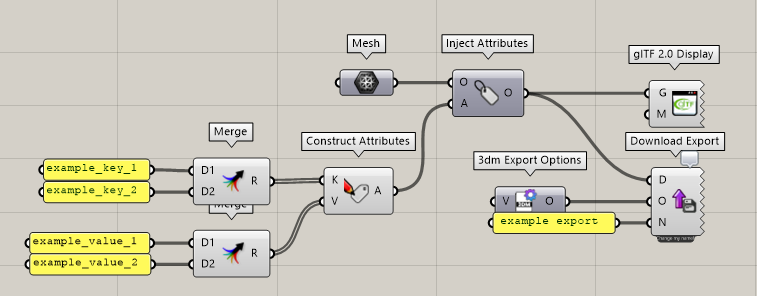

Consider the following definition, where attributes (with keys “example_key_1” and “example_key_2”) are injected in a mesh object before it is connected to both a Display component (for online display) and a Download Export component:
The file exported with the export component will feature the cube, and the two defined attributes will map to user text of the 3dm file. This can be tested locally by right-clicking on the export component on “Export locally”, and again after uploading to ShapeDiver, where an export button will be included in the model view page:

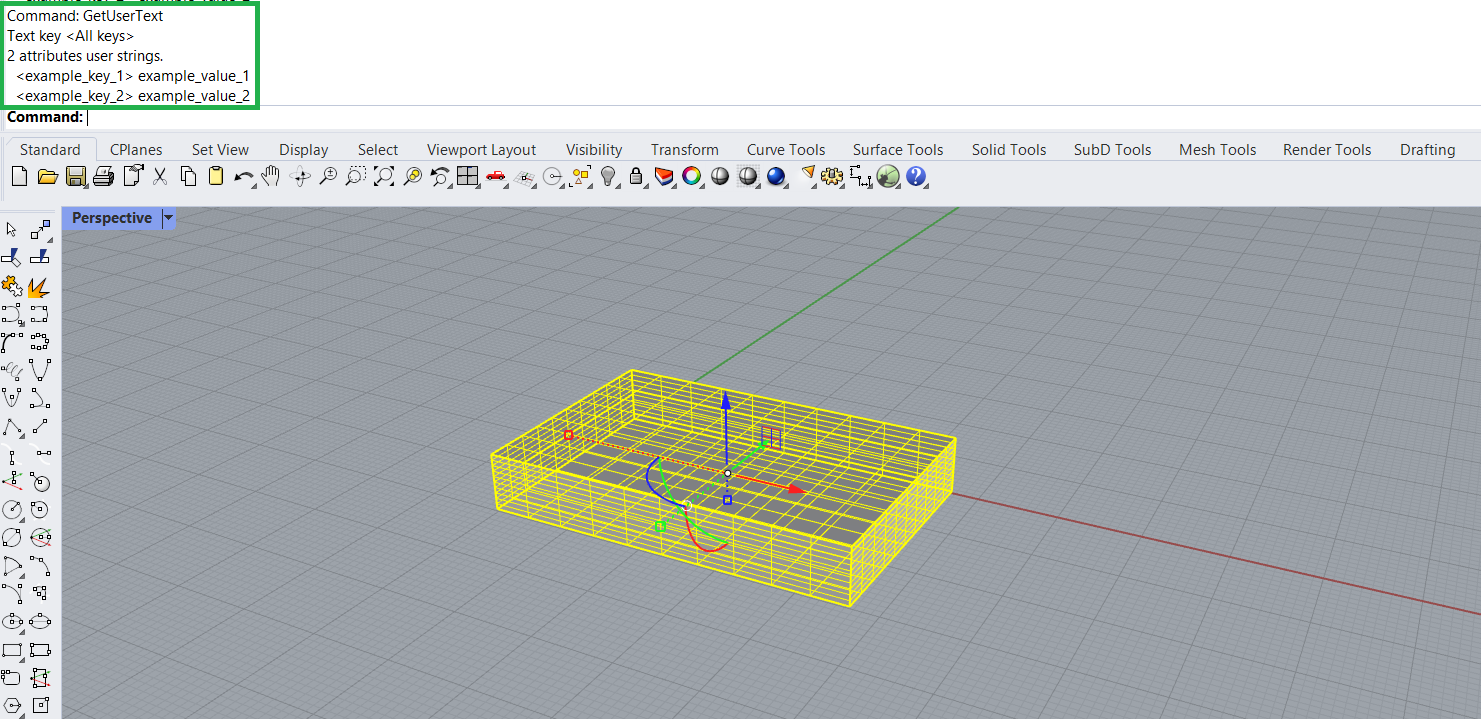

In both cases, opening the exported file in Rhino will show that the exported mesh includes the 2 user text key-value pairs defined by the attributes:
Find below the Grasshopper definition from the example:
Local testing

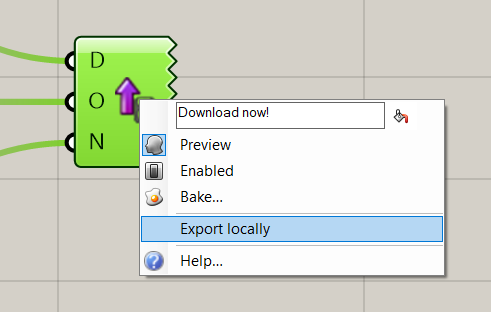

Right-click on the component and select “Export locally” to test the exported files on your local machine before uploading to ShapeDiver.
Naming the export

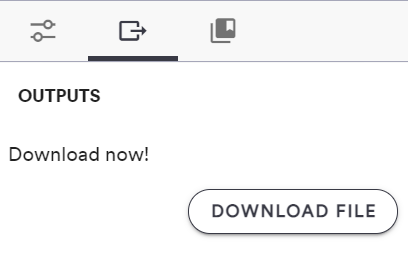

Rename the component to your liking in order to define the name of the export asset, both in the platform and in the various APIs. In the example above, the nickname of the component was set to “Download now!”, which results in the following control in the ShapeDiver platform:
